One possible solution for powering these wearable devices without a battery is to harvest energy from human body to generate electricity using a thermoelectric generator. A thermoelectric generator (TEG) is a solid-state device that can convert heat into electricity. When a TEG is attached directly onto the skin, heat from the human body flows through the TEG due to the temperature difference between the skin and the ambient. This heat flow, or the temperature gradient, creates a voltage in the TEG by the Seebeck effect, which performs useful work when connected to an external circuit.

Heat dissipation from a human body largely vary depending on the body location and surrounding conditions, typically heat flow available from the skin under indoor sedentary conditions is 1 ~ 10 mW/cm2 on the average at 22 °C ambient temperature, and a higher heat flow of 10 ~ 20 mW/cm2 is possible on the wrist, where the heat-carrying radial artery is located near the skin.

According to our calculations, a power output on the order of hundreds microWatts can be achieved using a wearable TEG of wrist-band type made of the existing polymeric or paste-type inorganic materials. Read our recent paper published in J. Mater. Chem. C for more information and complete review of the state-of-the-art flexible thermoelectric materials and devices.

• J.-H. Bahk, H. Fang, K. Yazawa, and A. Shakouri, “Flexible thermoelectric materials and device optimization for wearable energy harvesting,” J. Mater. Chem. C, accepted manuscript (2015). DOI: 10.1039/C5TC01644D

——
http://nanotechweb.org/cws/article/tech/55664

Flexible TEG breaks new power record

Researchers at the Integrated Nanotechnology Lab at KAUST in Saudi Arabia are the first to have made a thermoelectric generator on flexible silicon. The device, which is capable of generating 30 times more power than previous such generators, might find use in a host of application areas – including mobile phones, laptops, biomedical sensors and other portable devices.
Thermoelectric generators (TEGs) convert heat directly into electricity. The devices are good at conducting electricity but poor at conducting heat, and they have a large thermopower (the ratio of the voltage to temperature difference across the device to its temperature difference).
Thermoelectric generators (TEGs) convert heat directly into electricity. The devices are good at conducting electricity but poor at conducting heat, and they have a large thermopower (the ratio of the voltage to temperature difference across the device to its temperature difference).
The researchers, led by Muhammad Mustafa Hussain, began by fabricating their TEGs from the 2D layered materials bismuth telluride and antimony telluride on low-cost bulk mono-crystalline silicon. Next, they transformed the devices and the host silicon into flexible and transparent systems using state-of-the-art CMOS-compatible processes. The silicon layer is just 18 µm thick and contains 63 thermopiles.
The TEGs we made generate 0.15 µW of power, which is 30 times more than previously-made devices of this kind,” Hussain told nanotechweb.org. “The thin silicon contains trenches that serve to minimize heat loss from the hot end of the device to the cold end. The power generated by the finished device is enough to run ultralow power CMOS circuitry in sensors, including some in vivo biomedical devices.”
———————————————–

An intensive study of the performance of TEGs developed at IMEC and the Holst Centre allowed predicting the average limits for power production on man. At normal indoor conditions, the upper level is equal to about 30 µW per square centimeter occupying on the skin, on 24-hour average. It should be stressed that this is the acceptance-related limit [2, 3]. Taking into account the requirement of 50-100 µW necessary for the data processing and radio transmission, the self-powered wireless sensor nodes typically occupy an area of several square centimeters like a watch.

As a result of decreasing the leg cross section by a factor of two, the TEG dimensions were successfully halved to the size of a man’s watch, thereby significantly improving its acceptance by the users. At typical indoor temperatures, it generated a daytime power of 0.2-0.3 mW.
—————-
http://www.hindawi.com/journals/ijdsn/2015/438695/
International Journal of Distributed Sensor Networks
Volume 2015 (2015), Article ID 438695, 17 pages
http://dx.doi.org/10.1155/2015/438695
Review Article

A Survey on Energy Harvesting and Integrated Data Sharing in Wireless Body Area Networks

A vibration energy harvester system using ME transducer can produce an output power density of 0.472 mW/cm3 at the acceleration of 1 g at 51 Hz [26].

Terfenol/PZT/Terfenol sensor can produce more than 10 mW of electrical power with an acceleration of 0.5 g. The piezoelectric array within the midsole of the shoe can extract energy [42], but this shoe contains the generator; the prototype is big and heavy. Power output is measured for four subjects in three gait patterns. Walking experiments produces an average power of  mW/kg body weight, and jogging provides a higher average power level of  mW/kg.

BLE is designed essentially for asymmetric situations, where a peripheral advertises that it has some services to offer to a master who listens out, and decides if it wants to becomes a client.  Master and peripheral have different functions.  Master = client ; Peripheral = server

In the case of TS05, all devices were equivalent, and simply engaged in P2P exchanges where nobody was in charge.  In the case of TS06, when leaning on BLE, it might seem like a good idea to make only the anchors masters.  The power budget for a BLE master device is usually higher than a client, because it is required to listen out for advertisements from mobile devices.  If the mobile devices do not have a well-known schedule for communication attempts, then the anchors have to listen out all of the time.  (This isn’t quite true, but for this argument it serves.)  We have determined that there is a solid possibility that anchors, which can be larger than tags, can run entirely on harvested energy.

A wearable device needs to be as small as possible.  As such it has much less opportunity to harvest power, or the space to store it.  So a mobile device by contrast would prefer to stay powered off until it chose to communicate.  Then it could briefly communicate, and immediately shut down to save power.

This approach is sufficient if we can be sure that all encounters will involve at least one anchor. Plausibly we can arrange for two tags to discover each other, and communicate if they are within range, of an anchor which can act as some sort of go-between for two tags.  In summary, every interaction between tags would have to happen in an anchor field.  If we are unable to make energy-harvesting tags then this may be the only solution for now.

Sadly, the whole world is unlikely to be covered with anchors.  There will be occasions where one tag needs to detect the presence or absence of another tag, and there is no anchor around to take care of introductions.

A real world example

You wear a device, and another is attached to your purse, wallet, medications, backpack, running shoes, car.  This allows your system to detect patterns involving use of, or activities nearby some a proxy for some activity. Equally it’s useful to be able to detect encounters with other people.  Any of these events may occur outside the coverage of an anchor field.

Solutions and strategy

There is an argument that says that anchors of some flavor will become more an more common, and it will become unlikely to be outside an anchor field.  For example a BLE anchors can be embedded in a phone, or a nearby wifi node, or even a LoRa node.  At long as it has a reliable constant power source this can be wrangled to work.  The only requirement is that a tag can get a list of the other nearby tags from a third party anchor.   This requires some clever thinking that I have not done yet.

The other approach is to have ultra-low power listening devices, aka Wake-up Radios (WURs).  These listen at very low power (ideally nA, or pA) and simply raise an interrupt line on some more powerful radio if they receive a wake-up call.  That’s how low power devices can know when an ULP master can find out when it is time to listen.

For the moment let’s asume that we have to listen all the time, and that listening is expensive.  How do we minimize the time we have to listen, and minimize the number of advertising packets that get lost?

Beacon Theory

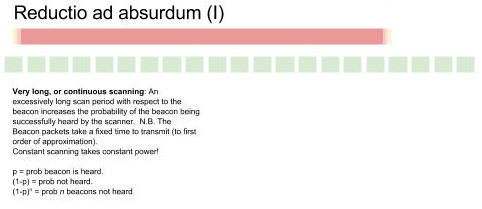

Choosing the right time, and duration to listen out for tags takes a bit to get your head around.
Advertising (aka Beacon) packets contain a fairly standard number of bits, and are essentially fixed size.  So the there are three decisions to be made:
  1. How often odes the server/peripheral beacon?
  2. How often does the client/master listen?
  3. For what duration does it listen?
There are two things that we want to avoid:  Sending advertising packets when nobody is listening for them – those are wasted;  Sending more packets thanare needed to get the message across (Duplicates).  More packets improves the probability that at least one is heard.  More packets in the ether means more packet collisions, and lower reliability. It’s a probability thing.
Making the scan period too small means that we will never hear the whole packet.
So what’s the goldilocks size?  After all this analysis, my answer is still “dunno”.  To be sure that the listen period is long enough, it clearly has to be at least as long as the advertisement.  But if it is the same length there is actually zero probability that they will line up.  So the minimum listen size is 2 x beacon time.  If beacons are transmitted continuously, then 2x assures that at least one packet will overlap.
Of course the there is always some probability that the packet gets lost en-route.  Let’s call the probability that it gets through OK p.  So the probability that it doesn’t get through is (1-p), and the probability that no packet in a sequence of n gets through is (1-p)^n.   The challenge is to figure out that probability p in practice!
——————

I know I can make something that will consume ~6mA or less constantly, and as radios get better, the lifetimes get better. But we know that BLE devices can be made to run for a long time on uA budgets if the architecture allows it. For us, that means a big religious compromise, and adopting an asymetric solution.

The strategic decision is how devices discover each other. Out choice is whether to have all devices running the same strategy (true peers, that scan and beacon), or an asymmetric strategy where we have tags running a low-budget (beacon-when-needed) strategy, and anchors running a higher budget (scan and beacon) strategy that compensates for the tag never scanning, by offering some check-in service that allows (non listening) tags some service to discover each other when they check in with a beacon.

I really dislike having a more complicated asymmetric solution, but I can see that it offers the tags hugely better battery life – perhaps tens of uA spent mainly on the IMU, as opposed to several mA spent listening all the time. After all, a FitBit will run for a week!

After scratching my head for a while I realized that having GMT available doesn’t help with the “beacon-scan sync” problem, unless every device has the same easy access to sync, which, of course blows the power budget.

So if we have a radio that can listen at 1.9mA (MicroSemi), or one that can listen at 6mA(BLE) the difference in battery life is only x3 – assuming that we can theoretically implement the same scheme under both radios.

The reason I say that is that whatever the radio is, clocks still drift. You either have to listen all the time, or adopt a listen-occasionally, and beacon more often – a scheme that blows the budget again.

The really sad thing is that all this would have been obvious with enough prior book work, but it’s so hard for bears-of-little-brain to see the problem until their nose is stuck in the honey-jar.

So time for a forage along the lines of an asymmetric solution.

There are really only two ways to synchronize the DW radios using some other low-power option: 1)  Don’t!  i.e. listen out at low-power all the time for data packets, or 2) synchronize all the uC clocks so that listeners and senders only listen during agreed windows.
In case 2, the peers’ window can be opened at:  (a) a GMT time, or  (b) after some mutually agreed period.

Implications

1 means we need to have a very low-power wake-up radio. At least we know that the lowest achievable threshold for that seems to be around 1,9mA with the ZL radio.
2a needs some locally accurate, accurate broadcast clock – like GPS (but nA power)
2b is what BLE does within a connection.

BLE synchronization mechanism

In a BLE connection, the sender and receiver can adjust the time they open, and close their communication windows based on their anticipated combined, worst-case clock slippage.  Then presumably, the listener resyncs based upon how early, or late the last successful packet arrived.
BLE assumes that clocks slip against one another by a known amount determined by the crystal. This is why during initialization of the BLE stack you have to tell it the properties of the crystal
– e,g, SOFTDEVICE_HANDLER_INIT(NRF_CLOCK_LFCLKSRC_XTAL_20_PPM, …)

Two non-critical things to NB:
  1. During connection, the peers exchange clock characteristics).
  2. It probably has to be the listener that adjusts because the transmitter may only be a broadcaster, and never listen.

Our BLE challenge.

The downside of the 2b technique hits when you have to have to listen out for multiple peers, as we do.  Once you have enough peers transmitting in an un-synchronised way, the listener needs to manage multiple windows, which will start to overlap. (I suspect n=4) Then the receiver ends up listening all the time anyway.  If the senders transmitted, not at random times, but in a perfectly synchronized way to all hit the receiver’s small window, then there would be a packet storm, and no packets would get through.
So the 3 connection limit is not actually a software limitation of the BLE softmachine.  It is probably a theoretical limit of the BLE protocol that would get relieved by much faster data rates.  But such a limit will always exist.
I could dig down into the BLE MAC layer (I presume I can get access somehow) and do something a lot simpler than BLE does, but I suspect that they are already doing the very best they can given the radio physics.
So  low-power listening, or clock sync, or a huge battery?

Although I really need to focus on getting the DW code integrated into the current system, I could not resist checking the power situation.

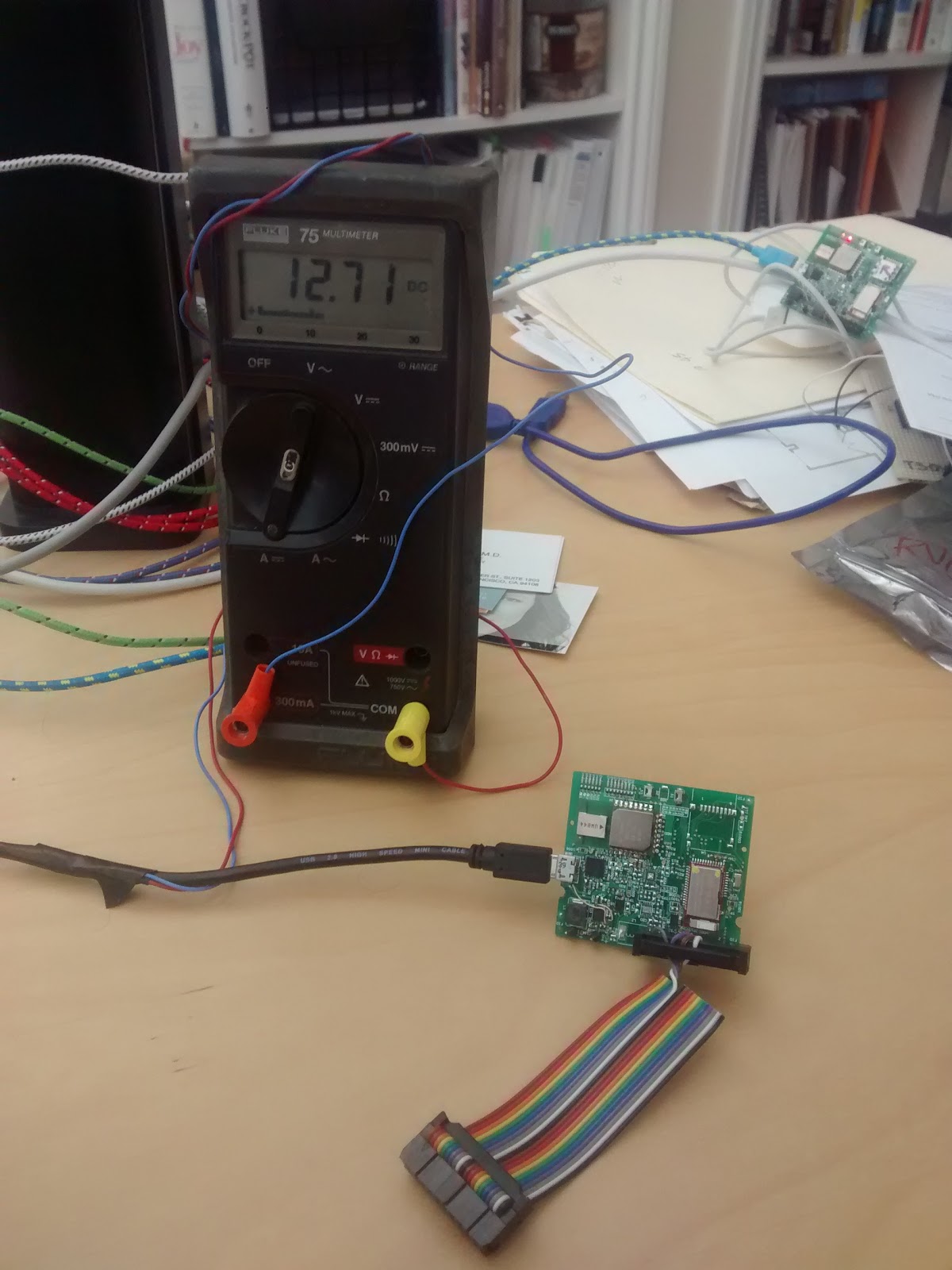

I hacked a USB wire

and inserted my Fluke ammeter into the red wire.  Could I somehow screw this up?

Then I configured the system simply to scan for BLE traffic continuously.  The results are not encouraging.

I guess the next step is to do a lot less, and try to figure out where the power is going.

David:


I got the board loaded and running and a 0.05 ohm resistor installed at R1001. All of the Nordic current should go through that resistor. I measure 0.124 mV, so 2.48 mA during MAIN SCAN_STARTING and briefly (maybe half a second) a much higher current of about 34 mA, I guess during MAIN SCAN_STOPPING. It’s too short to measure accurately with a meter and I haven’t hooked up the scope yet. The 0.05 resistor might make a voltage too small for the scope. Well, it *is* too small for the scope’s minimum range. A 0.5 or even 1 ohm resistor would be better.
I’m pretty sure about the 2.48 mA measurement. At least it’s not 12 mA.
11:27 PM (6 hours ago)

I was going to measure the total current but I don’t remember the function of the jumpers on the board to bypass the regulators and I need to go to bed. I can say that the FT232R is drawing about 1.94 mA.

Our challenge, as ever is wakeup.  Beaconing is something we don’t need to do all the time, but listening is.  Sniffing the ether occasionally is fine, but it requires the transmitter to beacon for longer.  I need a spreadsheet to get my head around this.

I am beginning to wonder if I have misunderstood the BLE documentation.  It looks like scanning may be expensive, compared with maintaining a bonded connection.

I don’t have any idea how much power either process takes yet.

There is a limit to how many connections the system can simultaneously maintain, so that’s could be a difficult issue.

You can use BLE driver (the Master Emulator only support 1) that runs on S130, now you can have 3 but later you can have up to 8 peripherals simultaneously when BLE driver use S130 v2.0.

This is a very useful article describing all the little things you can do to minimize power

How to minimize current consumption for BLE application on nRF51822

Current measurement guide: Measuring current with nRF52832 Engineering B and S132 v2.0.0-7.alpha

I’m beginning to think that we need a lower-freqency radio to get the same range with a lower power budget.

The Friis equation demonstrates the superior propagation characteristics of a sub-GHz radio, showing that path loss at 2.4GHz is 8.5dB higher than at 900MHz. This translates into 2.67 time longer range for a 900MHz radio, since range approximately doubles with every 6dB increase in power. To match the range of a 900MHz radio, a 2.4GHz solution would need greater than 8.5dB additional power.

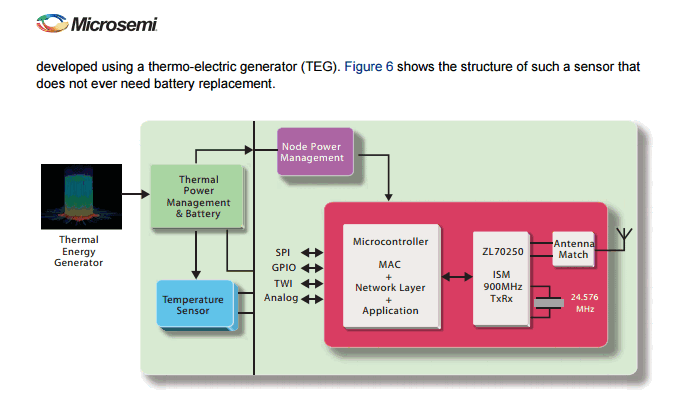

The MicroSemi ZL70250 looks more interesting.

To be an effective wake-up radio we need to write the MAC layer software so that it simply toggles a bit whenever it receives a packet containing it’s address.  That could be a very simply bit of software indeed.  If it could duty-cycle listening then it’s budget could be arbitrarily low, at the expense of a higher beacon budget.

Connection-less scanning and advertising started working today.

Two ts06.2s are chatting.  Each advertises its presence for 2 seconds and waits 5 seconds before doing it again.  In a parallel thread, each is scanning for advertisements for 5 seconds every 10 seconds.  Amazingly they are managing to find each other.

The next job is to get those periods of activity to be shorter and use less power, and then it is on to DecaWave-land.

I have a bunch of the BLE stuff working.  I can simultaneously advertise, and listen for advertisements, and receive connections from a cell phone to upload range log reports and diagnostics, and continuously output diagnostics to the USB.
I tested my latest iteration doing simultaneous BLE advertise and discovery.  It ran for a day doing  30521 iterations before dying from lack of memory.  Clearly I have a space leak, or some unusual storm of events occasionally overwhelms the buffer pool.  One of the lovely bugs that takes a day to reproduce.
I'm planning to get the last bit of the BLE infrastructure working this week, and then I'm going to try and integrate the UWB ranging.  If I can shoehorn all this in without more RAM squeezing I shall be pleased, and mildly surprised.
We are getting closer to something primitively testable, and then the power monitoring can begin to start generating a power model, and figuring out the daily budget.
//Mik

Should we get a kit?

Pledge €290 or more

We could add one of these chips to our platform, and stop worrying about BLE so much.  SemTech are offering free samples.

Fixed sensors can realistically be powered forever with just small solar panel.

Notice that the lowest RX current is still 10mA.   That MicroSemi chip could listen at 1.9mA, but the range was probably crap, and it was probably more sensitive to noise.  The nRF52 listens at 5.5 mA peak current in RX and TX (0 dBm) (was 9.7 Rx/8 Tx)

It also has the advantage of 512 kB flash/64 kB RAM, and we get a BLE radio for free-ish.

I merged a bunch of threads, and saved a bunch of stack space as a result.  There are only three threads now.  I wonder if this will be an issue later.

I changed the buffer management system to do more sharing.  I still have some more work to do on that.

The good news is that I now have a “whopping” 5.7K of RAM spare into which I have to shoehorn the DW data.
