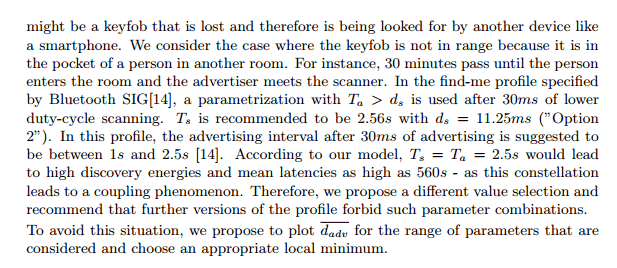

I read (no, I ‘scanned’ har, har) “Precise Energy Modeling for the Bluetooth LowEnergy Protocol” and set up advertising and scanning parameters based on it’s teachings.

I concluded:

  • Advertising interval 1-2.5 seconds
  • Scan interval 2.56s
  • Scan window 11.25 ms
I made two new test programs for David to measure.


Performs an advertising cycle every 250ms – no led activity under test! N.B. There will be some random additional housekeeping activity every 5th advertising cycle, which should be ignored.


Performs a 12ms scanning cycle every 255ms – no led activity under test! I think it should run for about an hour before it performs disruptive housekeeping.

David writes

My attempt at shielding has failed miserably. It turns out that the best results comes from not using the uCurrent but rather a larger resistor. these photos used the 10 ohm resistor in the uCurrent but the uCurrent is turned off and the scope connected directly to the wires from the TS06.

What does it mean when all of the LEDs flash on and off 4 times per second when running Scan256m12msNoLeds.hex? It starts what I think is normally and after a couple of minutes the flashing starts.

It’s a bug!  I set a timer-based pause, and sometimes it’s value is zero seconds.  This causes the soft-machine to crash.  Seems like pasue(0) ought to make sense.  Fixed in the next version.
Inline image 2

Scan256m12msNoLeds.hex booting

Inline image 4
Random initialization code running I expect
Scan256m12msNoLeds.hex advertising
Inline image 5
This is actually interesting – be good to know what that current is.
All LDEs start flashing after a couple of minutes
Inline image 6
Bug.  See note above.
Zoomed in on an event but not sure what it is
Inline image 7
Nor me.
Flash.hex. Notice the scale is 10s per div
Inline image 8
Looks pretty good to me.
Flash multi.hex
Inline image 9
1kHz flash
Inline image 10
2 kHz flash
Inline image 11
10kHz flash
Inline image 12

Advertise250mNoLeds.hex booting

Inline image 13
Advertise250mNoLeds.hex zoomed on short pulse
Inline image 14
I suspect these are the adv. packets going out on channels: 37, 38 and 39.  But it would be good to guestimate the current for this.
I haven’t tried to calculate the current.
