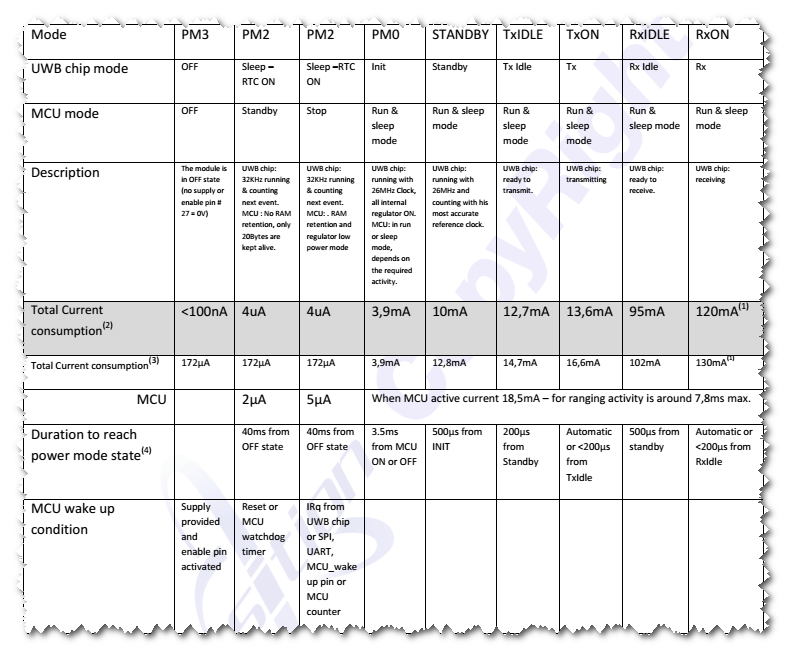

This table (FullSpec p21) is interesting, and looks like it contains enough info to answer preliminary power questions (if I knew how to do calcs)
They appear to nicely give a wet-finger estimate for a ranging operation
4uA with RTC on  SLEEPING
.5ms @ 10mA to  STANDBY
7-8 ms @ 18.5mA RANGING
So how many range operations can we do on our battery, neglecting other processing overhead?


On Thu, Jan 22, 2015 at 9:32 AM, Mik Lamming <> wrote:

Oh thanks.  Well done sirrah!

I hope to be through this wretched video crap soon, and back to TS – assuming I'm allowed.  I need to rent a cupboard-sized office at a secret location about 10 yards up the street!


On Thu, Jan 22, 2015 at 9:11 AM, David Carkeek <> wrote:

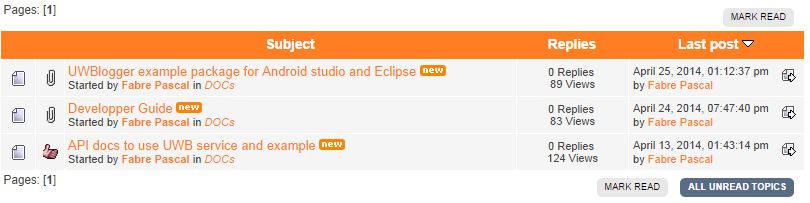

I have copied most of the files to TS06BeSpoonForum files. They seem to be pretty good about updating stuff. The latest release is 1/15.

When I downloaded the big zip files Chrome said "This file is malicious". I dismissed the warning but perhaps it's best to be cautious in case Fabre Pascal's computer is infected with something (I doubt it).

On Wed, Jan 21, 2015 at 10:10 PM, Mik Lamming <> wrote:

No I didn't.  I'll track them down and have a look tomorrow.


On Wed, Jan 21, 2015 at 12:14 PM, David Carkeek <> wrote:

Did you look at the files Franck alluded to? It's interesting to see how many people have viewed them. That's probably the number of entities that have ordered hardware.

I haven't downloaded anything yet.
